GS-FWS-WSC
Wall Washers-

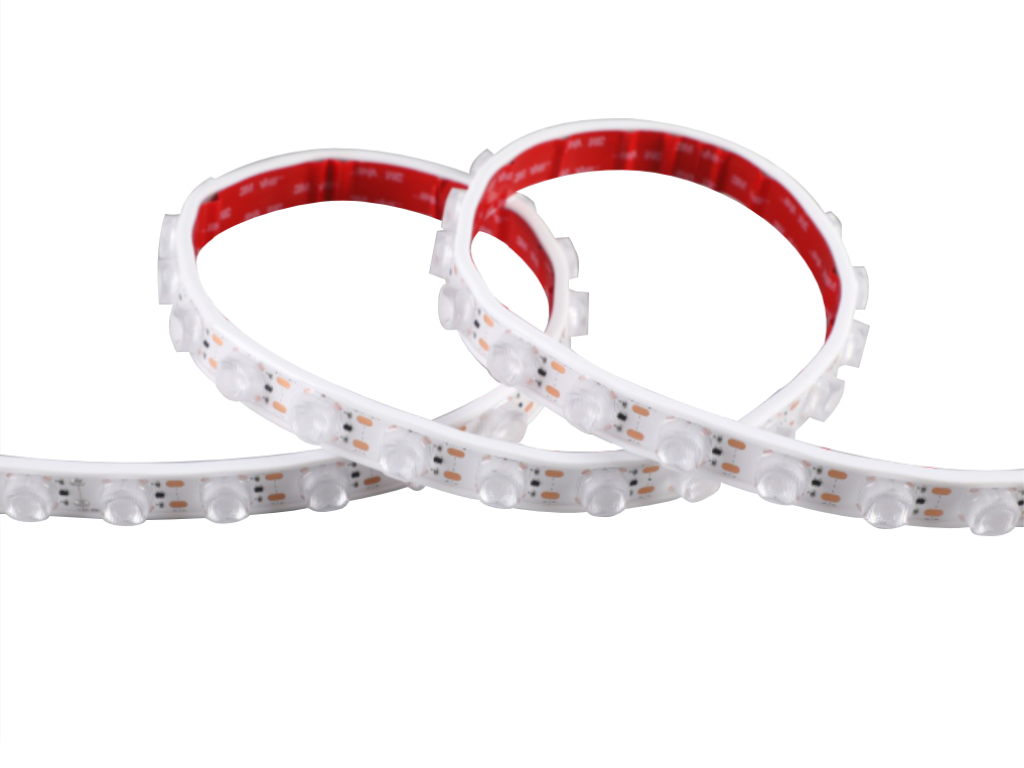

FLEXIBLE WALL WASHER WHITE SHORT-CUTTING
- A top-bend flexible wall washer, customizable and easy to process.
- Features a high-transmittance PC lens with diverse grazing angles.
- Compact yet efficient, using a high-power 3030 LED.
- Offers uniform brightness and color, and can be cut and assembled in the field to the desired length.
DOWNLOADS
Specifications
| Model | GS-FWS-WSC-R80 | GS-FWS-WSC-R90 |
| Lumen Output | 1692 ~ 1800 lm/M | 1440 ~ 1530 lm/M |
| Power Consumption | 18W (1M) | |
| Input Voltage | 24V DC | 24V DC |
| Colour Temperature | 2700K, 3000K, 4000K, 5000K | 2700K, 3000K, 4000K, 5000K |
| Dimensions | 23 × 13.5 × 5000 mm | 23 × 13.5 × 5000 mm |
| IP Rating | IP67 | IP67 |
| Bending Radius | >Ø75mm | >Ø75mm |
| CRI | >Ra80 | >Ra90 |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 15°x30°, 15°x60° | 15°, 20°, 30°, 40°, 60°, 15°x30°, 15°x60° |
| LED Quantity | 30 LED/M | 30 LED/M |
| LED Type | SMD 3030 | SMD 3030 |
